Porsche Transmission Upgrades: Gearbox Internals & PDK Builds

Porsche transmission upgrades are a step that serious power builds can’t afford to skip. The gearbox sits between the engine and the wheels, and every bit of torque the engine produces passes through it. On a stock car, the factory gearbox handles that job without issue. On a modified car pushing 800, 1000, or 1500 HP, the story changes fast. Gearbox failures on high-torque builds are rarely dramatic warnings. They tend to be sudden, expensive, and completely avoidable with the right preparation.

Porsche builds its factory gearboxes to impressive tolerances. The PDK in a 992 Turbo S is one of the best dual-clutch units in the world. However, it was designed around a specific torque figure, and that figure has a ceiling. Push significantly past it on a consistent basis and the internals start absorbing punishment they weren’t built to handle.

At ES Motors, gearbox preparation is part of every serious build. We address the transmission at the same time as the engine, not as an afterthought once something breaks.

Where Factory Gearboxes Hit Their Limit

The factory gearbox on a Porsche 911 Turbo handles stock torque with a comfortable margin. That margin shrinks quickly as power increases. Gear sets, synchronisers, and the differential all have torque ratings built around the factory power output. Exceed those ratings regularly and wear accelerates well beyond normal service intervals.

Gear sets are the first area of concern. The teeth on each gear are machined to a specific width and profile that suits the factory torque load. Under significantly higher torque, those teeth experience bending stress beyond their design limit. Over time this leads to tooth fatigue, chipping, and eventually gear failure under load.

Synchronisers are another common failure point. They allow smooth gear changes by matching shaft speeds before engagement. Under repeated hard shifts at high torque, the friction material on synchroniser rings wears faster than normal. The result is crunching, difficult gear selection, and eventually gear engagement problems that get progressively worse.

Upgraded Gear Sets: Handling Real Torque Figures

Aftermarket gear sets for high-torque Porsche applications use stronger steel alloys and revised tooth profiles to handle torque loads well beyond what the factory gearbox was rated for. The tooth geometry on a performance gear set distributes load more evenly across the contact patch, which reduces stress concentration and improves fatigue life significantly.

Gear set selection depends on the power target and how the car gets used. A street car that sees occasional hard launches needs a different specification to a dedicated drag or roll racing build that launches hard repeatedly. ES Motors specifies gear set upgrades based on the real torque figure the gearbox will see, not just the peak horsepower number.

In some cases, a full gear set replacement isn’t necessary. A thorough inspection of the existing gear sets, combined with upgraded bearings and synchronisers, can bring a gearbox to a reliable standard for builds in the 800 to 900 HP range. For builds beyond that, stronger gear sets become the right call.

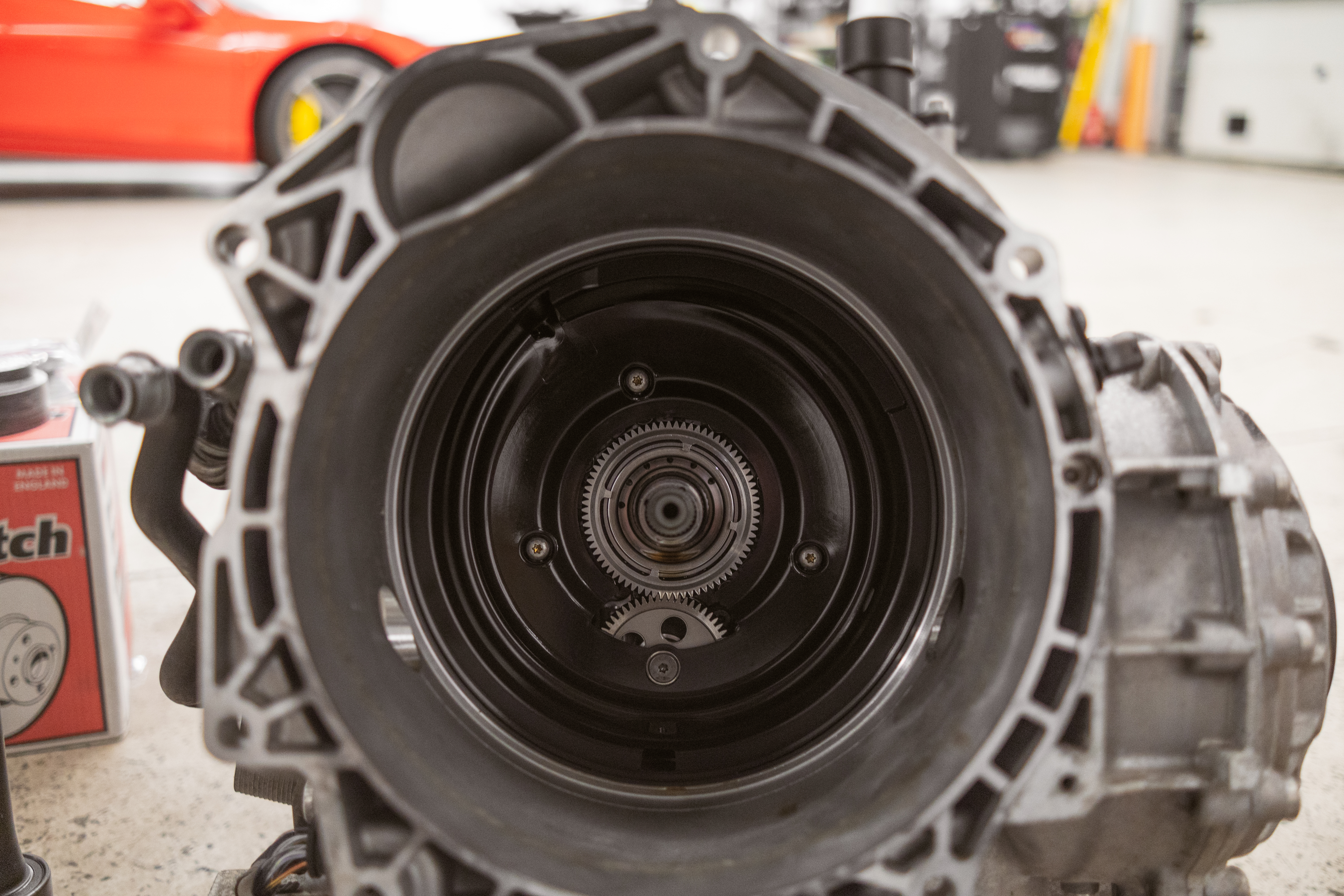

Differential Upgrades: Putting Power Down Properly

The differential is responsible for distributing torque between the driven wheels. On a high-torque build, the differential works significantly harder than on a stock car, particularly during acceleration when torque loads peak. Factory differentials handle stock torque well, but modified cars regularly push torque figures well beyond what the factory unit was designed for.

A limited-slip differential upgrade improves traction by controlling how torque splits between wheels under power. On a high-power rear or all-wheel drive Porsche, a properly specified LSD keeps both driven wheels working together during hard acceleration rather than allowing one wheel to spin while the other loses traction.

For extreme power levels, a strengthened differential housing and upgraded internals become necessary. The torque loads on the differential spider gears and side gears at 1000 HP plus are significant, and factory components in these areas have clear limits. At ES Motors, we assess the differential as part of every high-torque drivetrain build.

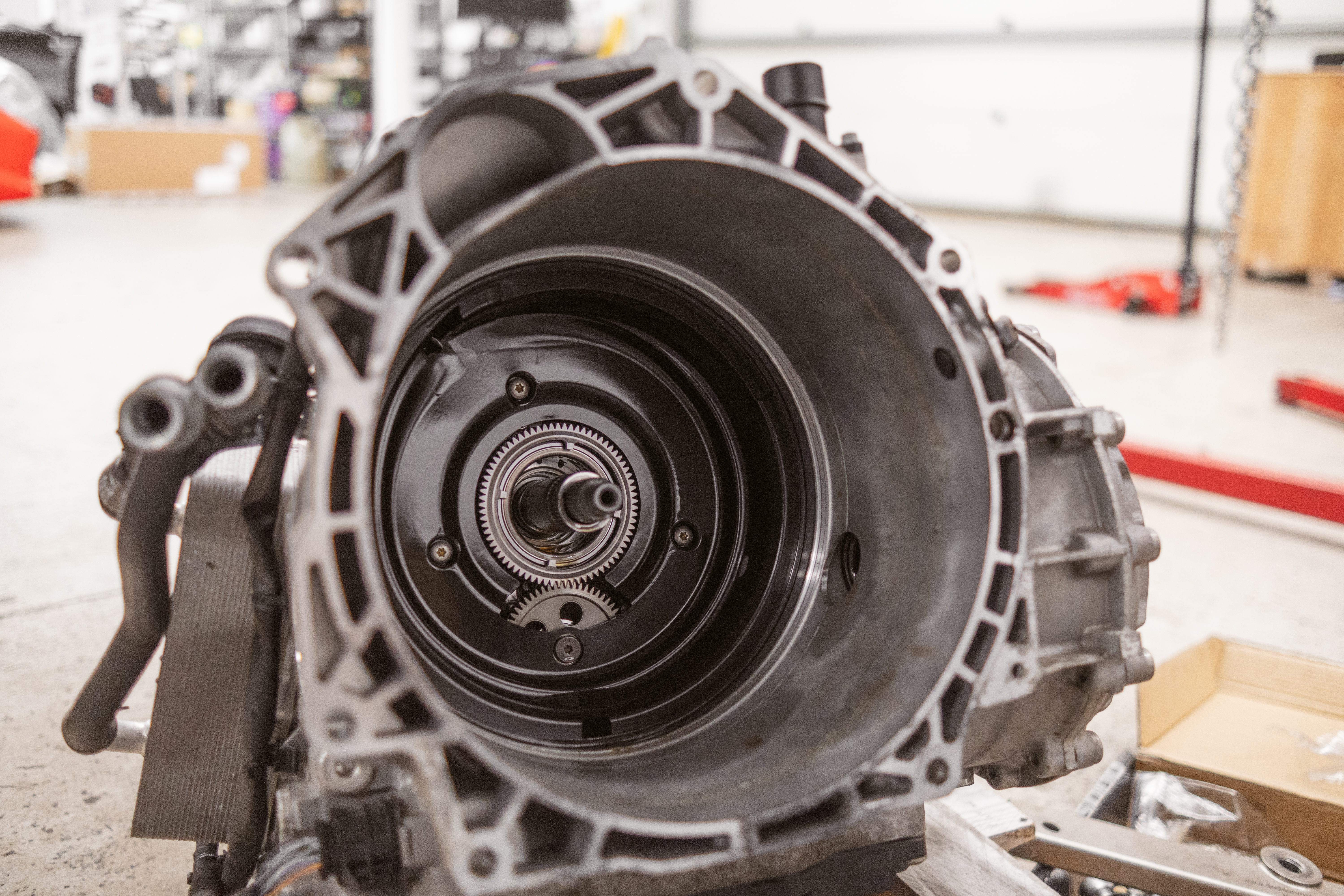

PDK Specific Upgrades: More Than Just Software

The PDK gearbox responds well to software tuning, and TCU remapping is an important step on any modified PDK car. However, on builds pushing serious torque, software alone isn’t enough. The physical internals of the PDK also need attention to handle what a high-power engine puts through them.

PDK-specific upgrades include strengthened input shafts, upgraded selector forks, and revised bearing specifications for the gear sets. These components handle the mechanical side of every gear change, and under repeated hard shifts at high torque they experience loads the factory units weren’t designed for.

Porsche transmission upgrades on a PDK car also often include attention to the mechatronic unit, which controls hydraulic pressure for gear engagement. A mechatronic that can’t maintain adequate pressure under hard use produces soft, slow shifts that waste both time and the mechanical advantage of a fast gearbox.

Gearbox Cooling & Lubrication

Heat is as much of a problem in the gearbox as it is in the engine. Under sustained hard use, gearbox oil temperature climbs and the lubricant loses its protective properties in much the same way as engine oil does. On a track car or a car used for roll racing, gearbox oil temperatures can reach levels that cause accelerated wear and eventual bearing failure.

A gearbox oil cooler routes transmission fluid through a heat exchanger to bring temperatures down under sustained load. This is a relatively straightforward upgrade that makes a significant difference on cars that see repeated hard use. Combined with the right transmission fluid specification, it keeps the gearbox operating in a temperature range where the oil maintains full protective properties.

At ES Motors, we always look at gearbox cooling as part of a complete transmission build. A gearbox with upgraded internals but inadequate cooling will still wear faster than it should. Getting both right is what produces a transmission that lasts.

Getting the Gearbox Right at ES Motors

Porsche transmission upgrades need to match the actual torque output of the finished build, not a rough estimate. A gearbox spec that’s right for 800 HP isn’t necessarily right for 1200 HP, and over-specifying in one area while leaving a weak point elsewhere doesn’t make the transmission reliable overall.

At ES Motors, we assess the full transmission system as part of every high-torque build. Gear sets, synchronisers, differential, cooling, and software all connect, and we address them together rather than in isolation. The goal is a gearbox that puts the engine’s power down reliably, repeatedly, and without surprises.

If you’re planning a high-torque Porsche build and want to make sure the gearbox is ready for what you’re putting through it, contact ES Motors and speak with our transmission specialists today.
